SMART-BOX
Scroll

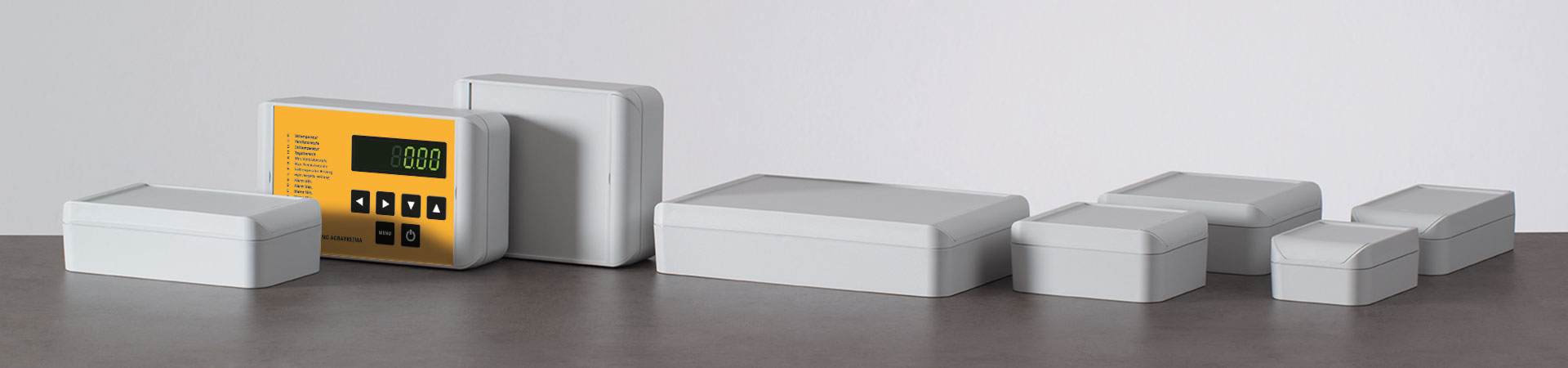

Smart-Box

Advanced IP 66 plastic enclosures

The rounded ergonomic design of the SMART-BOX series is designed to enhance the visual impact and tactile quality of your industrial electronics.

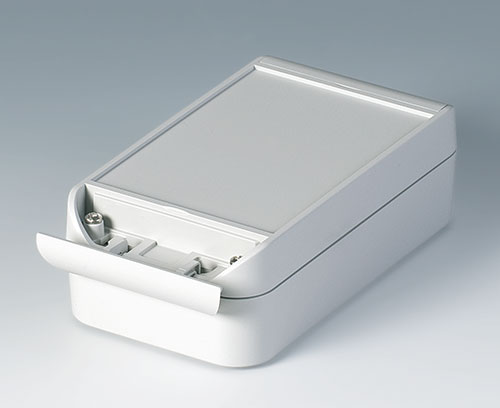

  • convincing design; hinged flush-fitting trims hide all the case fixings
  • high-quality material ASA+PC (UL 94 V-0) for use in tough conditions; also flame-retardant and self-extinguishing

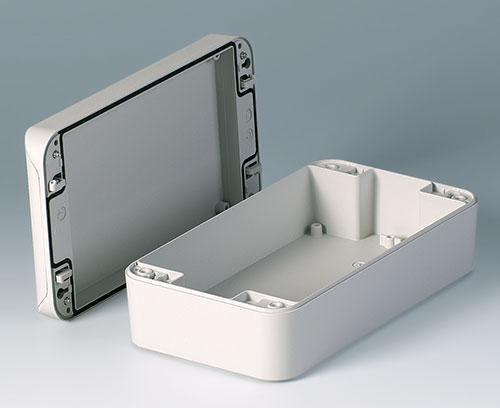

  • high protection class IP 66 (width 3.54"/4.33"/5.12"/5.91"), IP 65 (width 6.69"); with pre-fitted sealing gaskets in the top
  • high-quality A2 stainless steel alloy screws with high corrosion resistance – even against aggressive substances

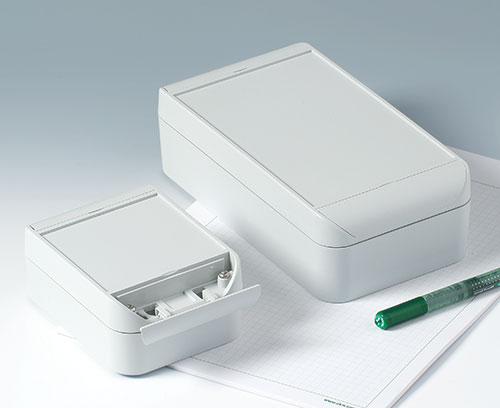

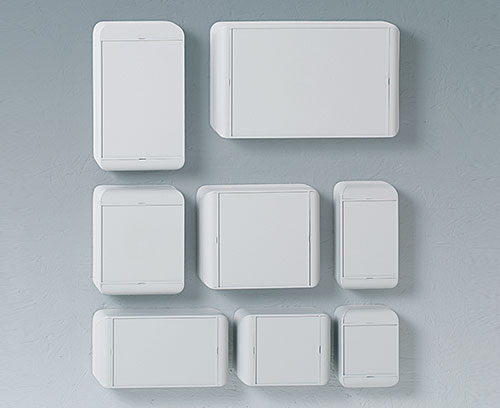

  • universal use for wall mount and desktop applications

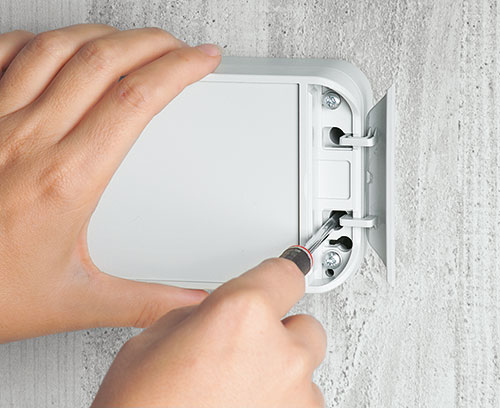

  • screw shafts for wall mounting hidden under the hinged trims
  • case feet (accessory), simply snap-in ensure non-slip desktop positioning

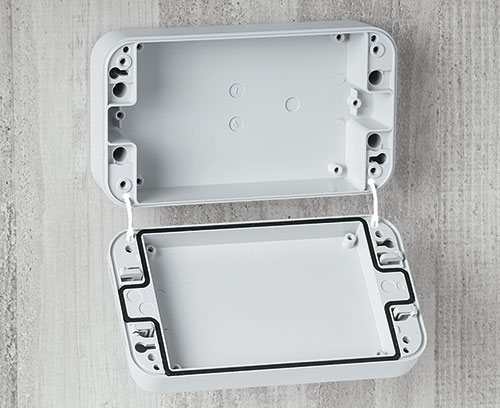

  • two plastic lid retaining straps included

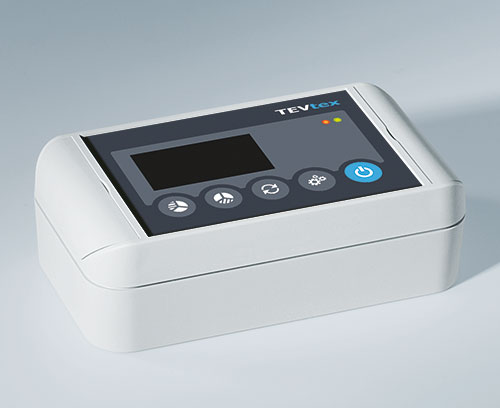

  • recessed operating area for protecting a membrane keypad; additional surface for labels on the underside

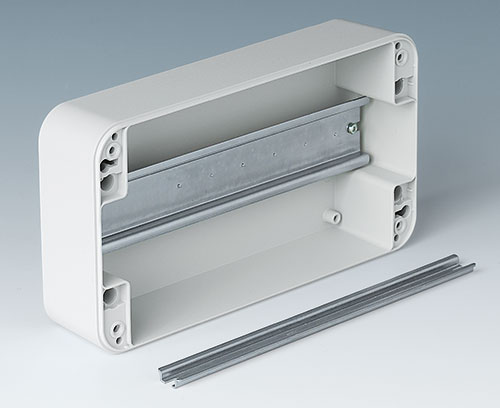

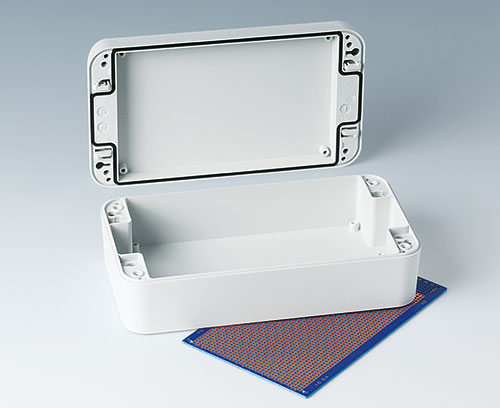

  • internal fastening pillars for PCBs and DIN rails
Generate PDF

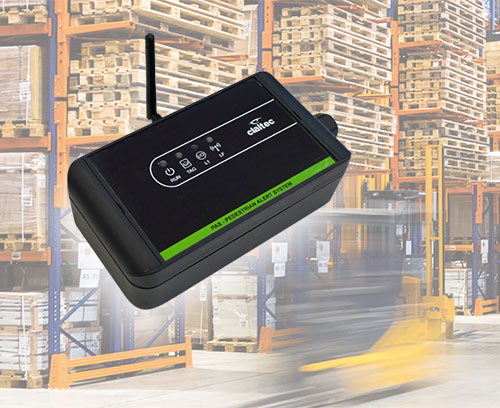

  • Application Examples

Application fields

Ideal for design orientated electrical and electronic applications, e.g.

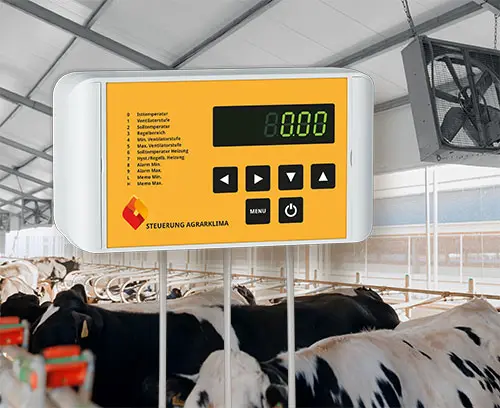

  • Heating, air conditioning and ventilation engineering
  • Control and system engineering

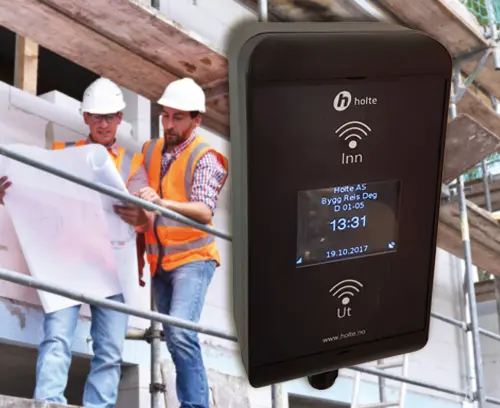

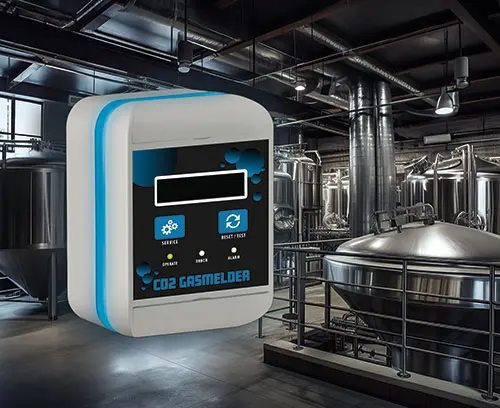

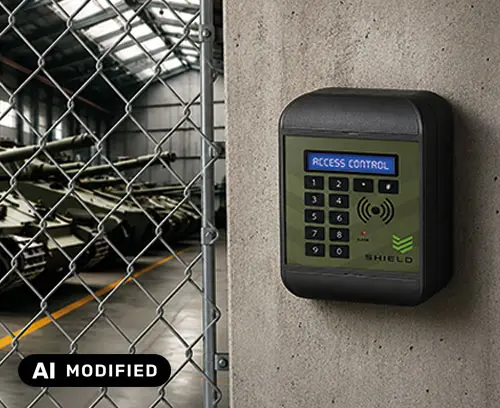

  • Safety technology

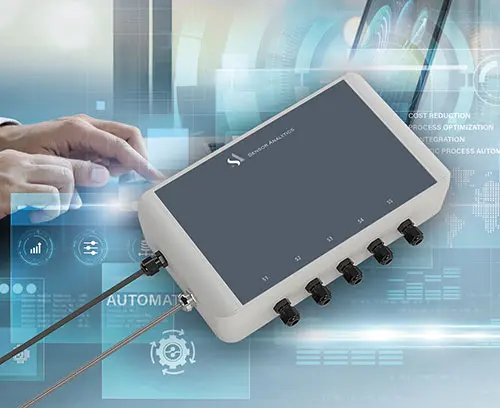

  • IoT/IIoT
  • Smart Factory
  • Industry 4.0

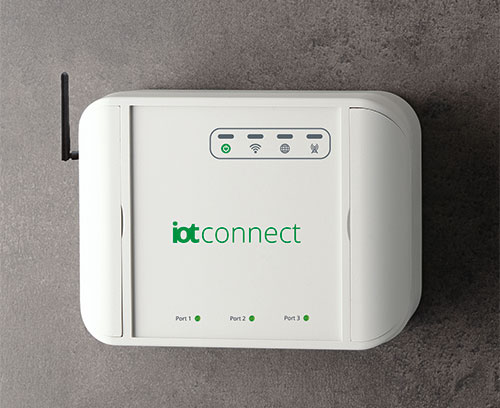

  • Gateways
  • Browse Full List
  • Accessories
  • View Customizing Options

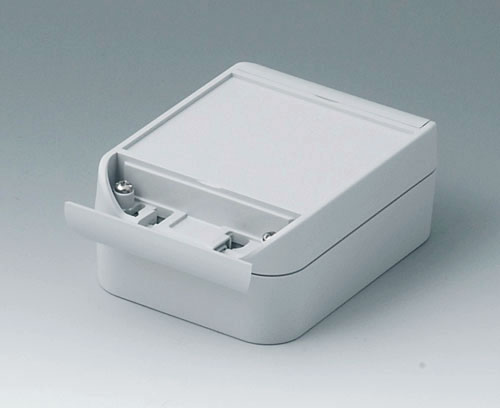

C6009121 SMART-BOX WIDTH 3.543"

C6009121

SMART-BOX WIDTH 3.543" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6009121

SMART-BOX WIDTH 3.543"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
4.72″x3.54″x1.97″
IP 66

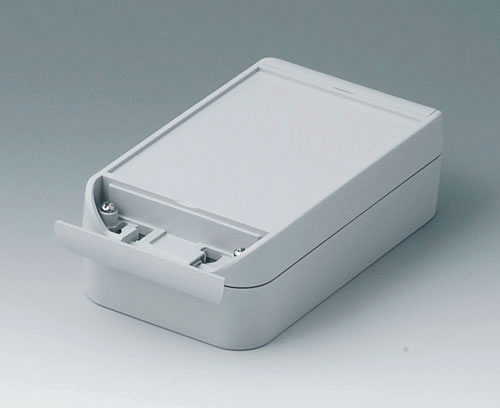

C6009161 SMART-BOX WIDTH 3.543"

C6009161

SMART-BOX WIDTH 3.543" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6009161

SMART-BOX WIDTH 3.543"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
6.30″x3.54″x1.97″
IP 66

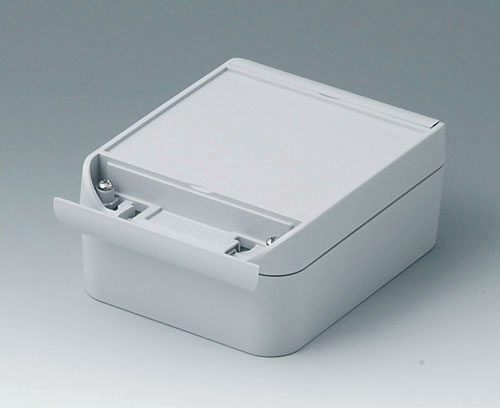

C6011141 SMART-BOX WIDTH 4.331"

C6011141

SMART-BOX WIDTH 4.331" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6011141

SMART-BOX WIDTH 4.331"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
5.51″x4.33″x2.36″
IP 66

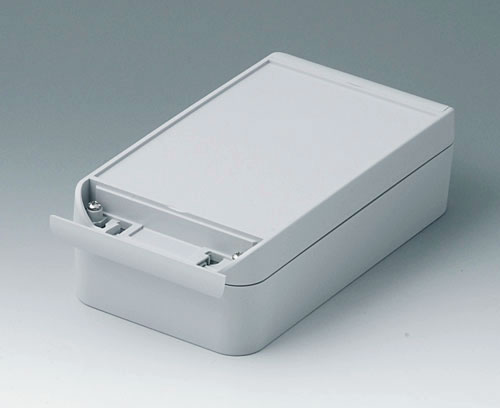

C6011201 SMART-BOX WIDTH 4.331"

C6011201

SMART-BOX WIDTH 4.331" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6011201

SMART-BOX WIDTH 4.331"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
7.87″x4.33″x2.36″
IP 66

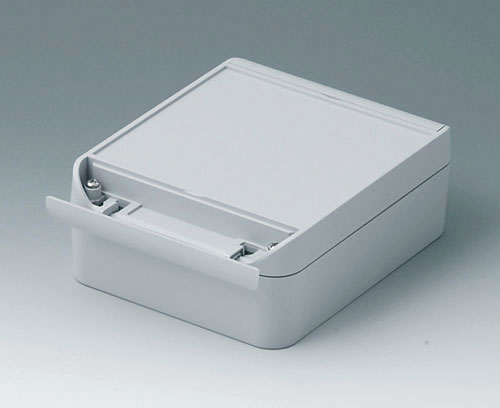

C6013161 SMART-BOX WIDTH 5.118"

C6013161

SMART-BOX WIDTH 5.118" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6013161

SMART-BOX WIDTH 5.118"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
6.30″x5.12″x2.36″
IP 66

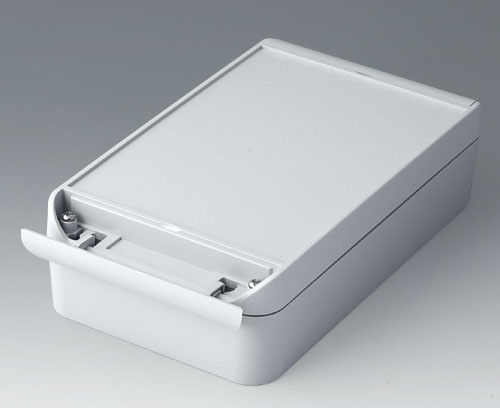

C6013221 SMART-BOX WIDTH 5.118"

C6013221

SMART-BOX WIDTH 5.118" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6013221

SMART-BOX WIDTH 5.118"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
8.66″x5.12″x2.36″
IP 66

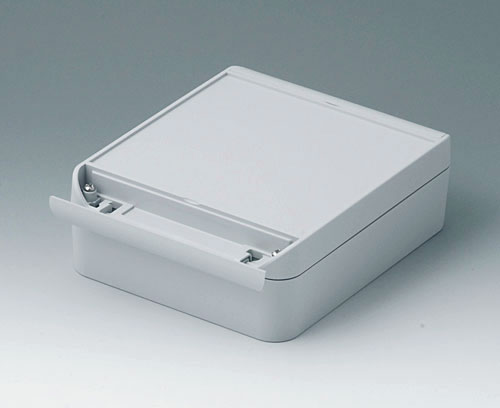

C6015181 SMART-BOX WIDTH 5.906"

C6015181

SMART-BOX WIDTH 5.906" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention

Close

C6015181

SMART-BOX WIDTH 5.906"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
7.09″x5.91″x2.36″
IP 66

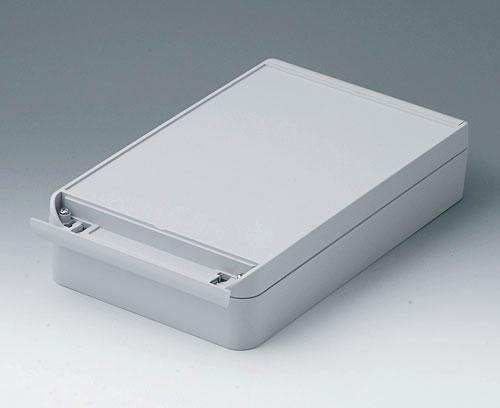

C6017281 SMART-BOX WIDTH 6.693"

C6017281

SMART-BOX WIDTH 6.693" Four-part enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6017281

SMART-BOX WIDTH 6.693"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
11.02″x6.69″x2.36″
IP 65
A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket
A0308031 Self-tapping screws 0.118" x 0.315" (PZ1)

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1)
product added to your basket
A0308132 Self-tapping screw 0.118" x 0.315" (T10)

A0308132

Self-tapping screw 0.118" x 0.315" (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 0.118" x 0.315" (T10)
product added to your basket
Stainless steel

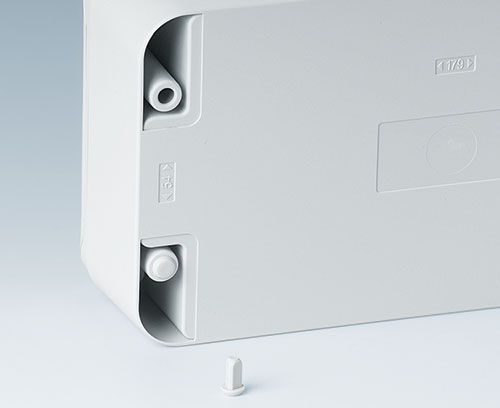

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Close

C2299018

Case feet
product added to your basket
TPE (UL 94 HB)
C2306917 Pressure equalization element M6x0.030"

C2306917

Pressure equalization element M6x0.030" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2306917

Pressure equalization element M6x0.030"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56
C2310917 Pressure equalization element M10x0.039"

C2310917

Pressure equalization element M10x0.039" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2310917

Pressure equalization element M10x0.039"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56
C2316147

C2316147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.020" - 0.118" and for cable diameters from 0.197" - 0.394". Operating temperatures from -40°C to +100°C. Borehole ø 0.650".

Supply 1 cable grommet

Close

C2316147

Cable grommet
product added to your basket
TPE
light gray RAL 7035
IP 67
C2320137 Cable grommet

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.039" - 0.157" and for cable diameters from 0.315" - 0.512". Operating temperatures from -40°C to +100°C. Borehole ø 0.807".

Supply 1 cable grommet

Close

C2320137

Cable grommet
product added to your basket
EPDM
light gray RAL 7035
IP 67
C2320147

C2320147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.020" - 0.118" and for cable diameters from 0.236" - 0.512". Operating temperatures from -40°C to +100°C. Borehole ø 0.807".

Supply 1 cable grommet

Close

C2320147

Cable grommet
product added to your basket
TPE
light gray RAL 7035
IP 67

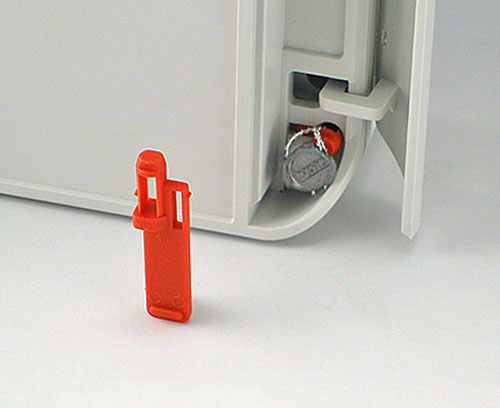

C6100006 Security plug

C6100006

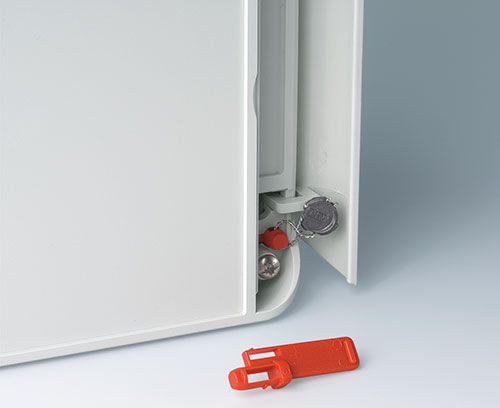

Security plug For use with lead tags.

Supply 1 plug

Close

C6100006

Security plug
product added to your basket
PA 6
red

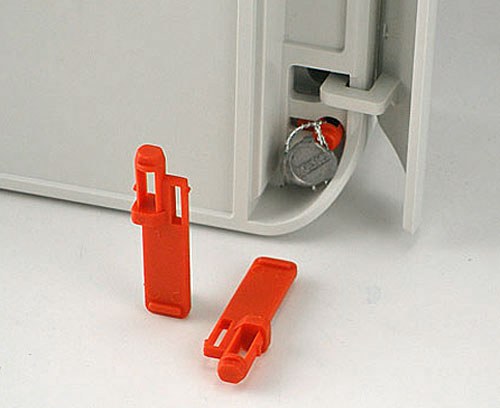

C6100016 Set of security

C6100016

Set of security For use with lead tags.

Supply 2 plugs

Close

C6100016

Set of security
product added to your basket
PA 6
red

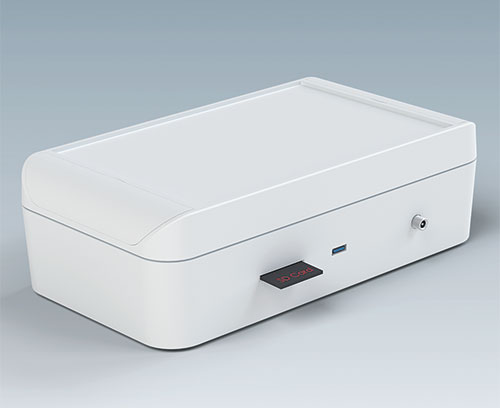

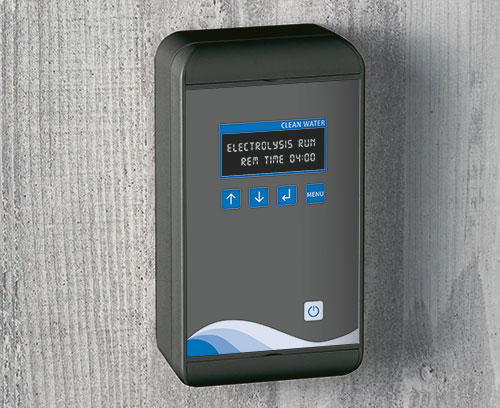

Customizing options for Smart-Box

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
