B3407021 SMART-TERMINAL 200
Scroll

B3407021

SMART-TERMINAL 200

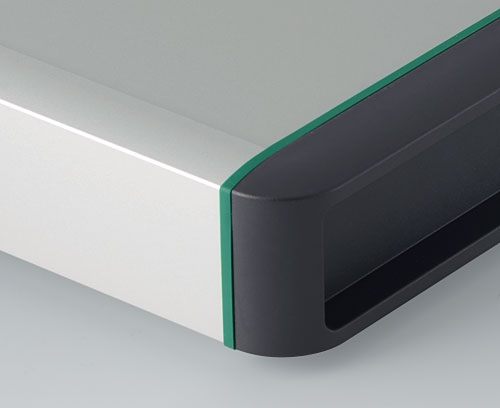

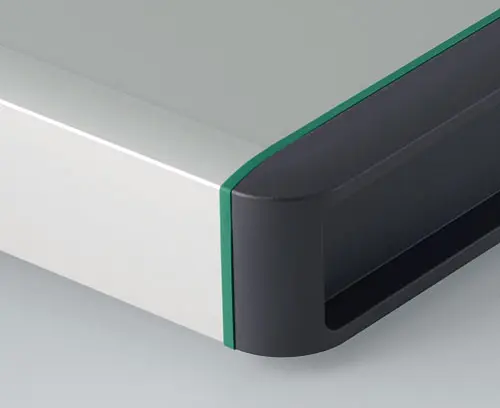

Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in green and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply

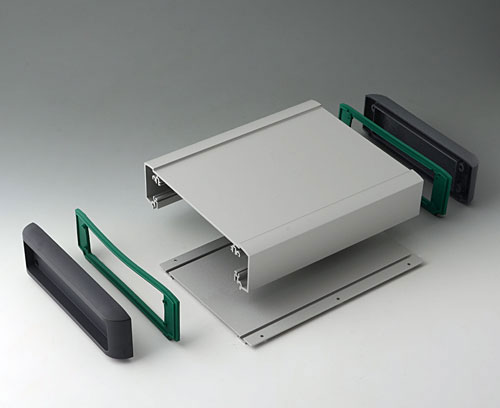

Top profile, base profile, set of designer seals in green, set of side covers, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B3407021

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "station"

B3507030 Case canting kit

B3507030

Case canting kit Cants the enclosure by 12° to provide an ergonomic angle for reading displays and operating the device on a table. The rubber feet included in the supply ensure that the desk-top enclosure does not slip.
Rational assembly – no additional screw connection needed: when the enclosure is being assembled, the case canting moldings are pushed into the base profile and automatically fixed by the side covers.

Supply 2 canting stands, 4 rubber feet

Close

B3507030

Case canting kit
product added to your basket
ASA+PC (UL 94 V-0)
lava

Accessory "wall/holder"

B3507020 Wall suspension element

B3507020

Wall suspension element Two-piece design for secure and flush mounting of the SMART-TERMINAL enclosure.
Installation: Fix the anti-slip pads supplied (to prevent the enclosure from being pushed to the side) on the wall suspension element, and then screw the wall suspension element to the wall, or a flat machine front panel. Insert the tongue on the back of the enclosure, in the centre, and hang the enclosure onto the wall suspension element and mount on the wall or similar with a screw (not supplied).

Supply 1 wall suspension element, 1 wall suspension tongue, 2 anti-slip pads (self-adhesive)

Close

B3507020

Wall suspension element
product added to your basket
Aluminum

Accessory "screws"

A0330080 Screw M3 x 3.150" (T10)

A0330080

Screw M3 x 3.150" (T10) For fastening PCBs and board assemblies on the top profile of the SMART-TERMINAL enclosures.

Supply 1 screw

Close

A0330080

Screw M3 x 3.150" (T10)
product added to your basket
Stainless steel
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your basket
B3500001 Set of M3 square-head nuts

B3500001

Set of M3 square-head nuts For mounting a PCB or mounting plate on the base profile of the SMART-TERMINAL enclosure. The square-head nuts can be positioned anywhere within the T-grooves in the base profile, depending on the installation configuration.

Supply 4 M3 square-head nuts

Close

B3500001

Set of M3 square-head nuts
product added to your basket
Steel

Customizing options for B3407021

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Application Examples
  • Purchasing Data
Material
Aluminum AlMgSi 0.5
Profiles
ASA+PC (UL 94 V-0)
Side covers
TPV 50A
Designer seals
Protection class
IP 54
Color
Profiles matt anodized,
Side covers lava,
Designer seals green
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
9.528″
242 mm
Width
6.693″
170 mm
Height
1.969″
50 mm
PCB length, top
7.874″
200 mm
PCB width, top
4.606″
117 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
743 g
Customs tariff number
(OKW product)
76042990
Country of manufacture
Germany
