B3507020 Wall suspension element
Scroll

B3507020

Wall suspension element

Two-piece design for secure and flush mounting of the SMART-TERMINAL enclosure.

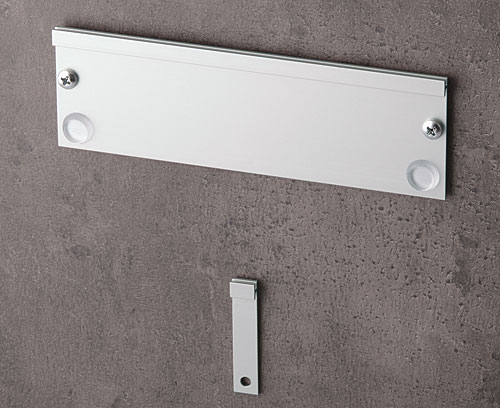

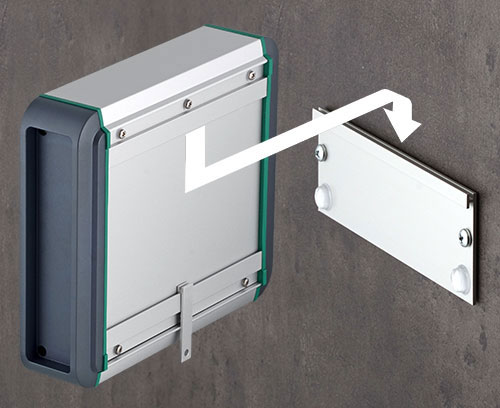

Installation: Fix the anti-slip pads supplied (to prevent the enclosure from being pushed to the side) on the wall suspension element, and then screw the wall suspension element to the wall, or a flat machine front panel. Insert the tongue on the back of the enclosure, in the centre, and hang the enclosure onto the wall suspension element and mount on the wall or similar with a screw (not supplied).

Supply

1 wall suspension element, 1 wall suspension tongue, 2 anti-slip pads (self-adhesive)

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B3507020

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customizing Options
B3407011 SMART-TERMINAL 160

B3407011

SMART-TERMINAL 160

Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in green and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit

Close

B3407011

SMART-TERMINAL 160
product added to your basket
Aluminum AlMgSi 0.5
matt anodized
7.95″x6.69″x1.97″
IP 54
B3407012 SMART-TERMINAL 160

B3407012

SMART-TERMINAL 160 Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in volcano and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit

Close

B3407012

SMART-TERMINAL 160
product added to your basket
Aluminum AlMgSi 0.5
matt anodized
7.95″x6.69″x1.97″
IP 54
B3407013 SMART-TERMINAL 160

B3407013

SMART-TERMINAL 160

Robust enclosure with two-part aluminum profile (glass bead-blasted and anodised) and aluminum end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, 2 aluminum end plates, assembly kit incl. anti-slide feet

Close

B3407013

SMART-TERMINAL 160
product added to your basket
Aluminum AlMgSi 0.5
matt anodized
6.46″x6.69″x1.97″
B3407021 SMART-TERMINAL 200

B3407021

SMART-TERMINAL 200 Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in green and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit

Close

B3407021

SMART-TERMINAL 200
product added to your basket
Aluminum AlMgSi 0.5
matt anodized
9.53″x6.69″x1.97″
IP 54
B3407022 SMART-TERMINAL 200

B3407022

SMART-TERMINAL 200 Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in volcano and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit

Close

B3407022

SMART-TERMINAL 200
product added to your basket
Aluminum AlMgSi 0.5
matt anodized
9.53″x6.69″x1.97″
IP 54
B3407023 SMART-TERMINAL 200

B3407023

SMART-TERMINAL 200

Robust enclosure with two-part aluminum profile (glass bead-blasted and anodised) and aluminum end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, 2 aluminum end plates, assembly kit incl. anti-slide feet

Close

B3407023

SMART-TERMINAL 200
product added to your basket
Aluminum AlMgSi 0.5
matt anodized
8.03″x6.69″x1.97″
B3407031 SMART-TERMINAL 240

B3407031

SMART-TERMINAL 240 Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in green and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit

Close

B3407031

SMART-TERMINAL 240
product added to your basket
Aluminum AlMgSi 0.5
matt anodized
11.10″x6.69″x1.97″
IP 54
B3407032 SMART-TERMINAL 240

B3407032

SMART-TERMINAL 240 Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in volcano and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit

Close

B3407032

SMART-TERMINAL 240
product added to your basket
Aluminum AlMgSi 0.5
matt anodized
11.10″x6.69″x1.97″
IP 54
B3407033 SMART-TERMINAL 240

B3407033

SMART-TERMINAL 240

Robust enclosure with two-part aluminum profile (glass bead-blasted and anodised) and aluminum end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, 2 aluminum end plates, assembly kit incl. anti-slide feet

Close

B3407033

SMART-TERMINAL 240
product added to your basket
Aluminum AlMgSi 0.5
matt anodized
9.61″x6.69″x1.97″

Customizing options for B3507020

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Weight/1 part
44 g
Customs tariff number
(OKW product)
76042990
Country of manufacture
Germany
