B4056317 UNITEC M, 0.06/0.06
Scroll

B4056317

UNITEC M, 0.06/0.06

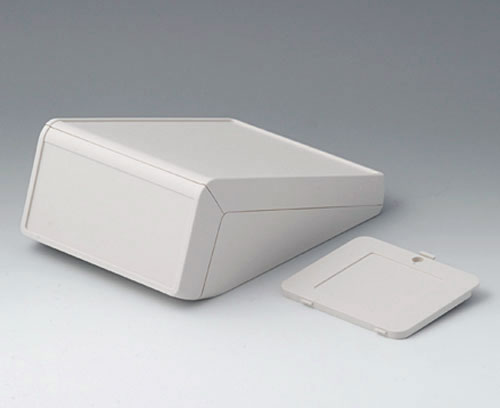

Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 0.055". Top part recessed 0.055". Two membrane keyboards may be used! Fastening pillars for mounting of PCBs in top, base and front part.

Version

With battery compartment 5 x AA

Supply

1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B4056317

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "wall/holder"

B4156307 Wall suspension element M

B4156307

Wall suspension element M Covered wall-fixing. Having a functional and an optically elegant design, the wall-suspension kit offers a sophisticated appearance. Two part construction. The adapter will be fixed to the case and then locked onto the wall-holder.

Supply 1 wall suspension element, 1 adapter with assembly kit

Close

B4156307

Wall suspension element M
product added to your basket
off-white RAL 9002

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket

Accessory

A9212330 Anti-slide feet 0.472" x 0.138"

A9212330

Anti-slide feet 0.472" x 0.138" Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9212330

Anti-slide feet 0.472" x 0.138"
product added to your basket
transparent

Customizing options for B4056317

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 40
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
5.827″
148 mm
Depth
8.268″
210 mm
Height
3.150″
80 mm
PCB length, base
6.535″
166 mm
PCB width, base
5.197″
132 mm
PCB length, top
7.087″
180 mm
PCB width, top
5.197″
132 mm
Keypad length
7.031″
178.6 mm
Keypad width
5.024″
127.6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
244 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
