B4610107 SMART-CONTROL M, Vers. I
Scroll

B4610107

SMART-CONTROL M, Vers. I

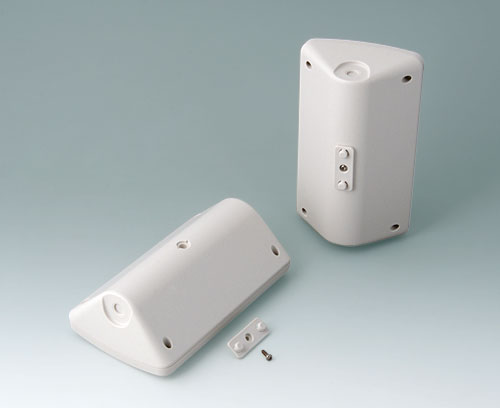

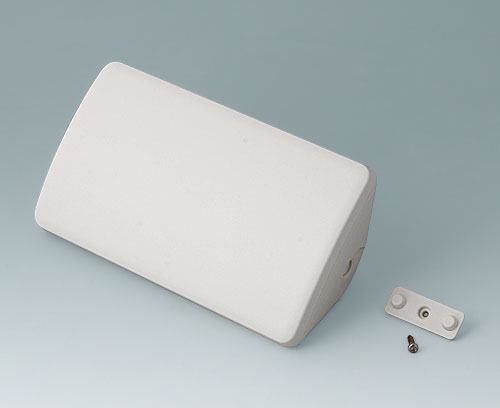

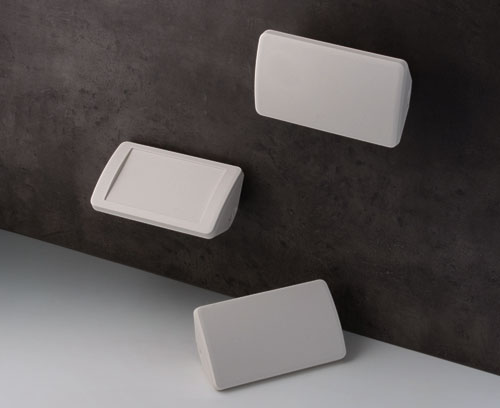

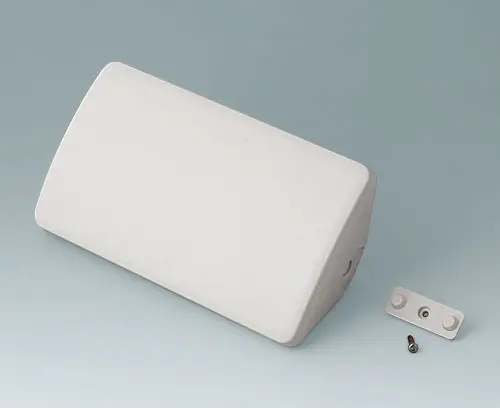

Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version

Case-top without recessed operating area

Supply

Top and bottom parts, assembly kit incl. universal adapter

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B4610107

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "station"

B4705207 Desktop stand set

B4705207

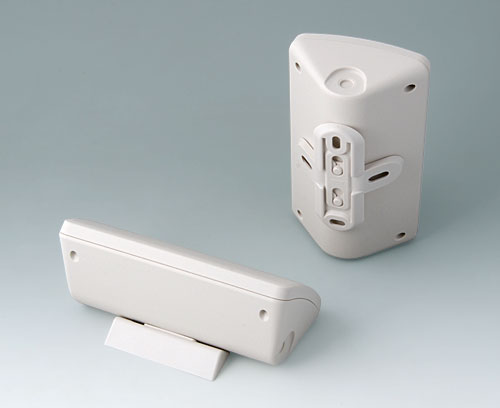

Desktop stand set For reliable positioning on a desktop, giving an ergonomic reading angle of 45° when the enclosure is set up horizontally. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 desktop stand set incl. 2 self-adhesive rubber feet

Close

B4705207

Desktop stand set
product added to your basket
ASA+PC (UL 94 V-0)

Accessory "protection"

B4710920 Seal M

B4710920

Seal M Application: for increasing the protection class, of SMART-CONTROL M. Bottom part of the enclosure with groove for inserting the seal.

Supply 1 seal

Close

B4710920

Seal M
product added to your basket

Accessory "wall/holder"

B4705907 Wall suspension element

B4705907

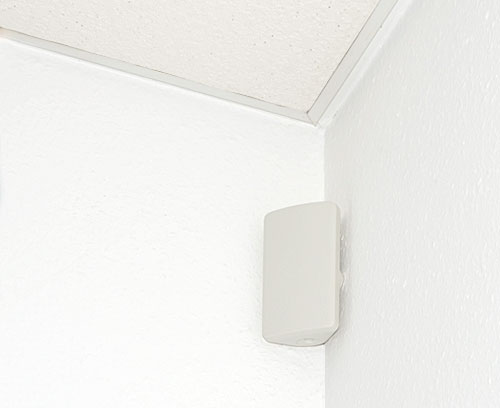

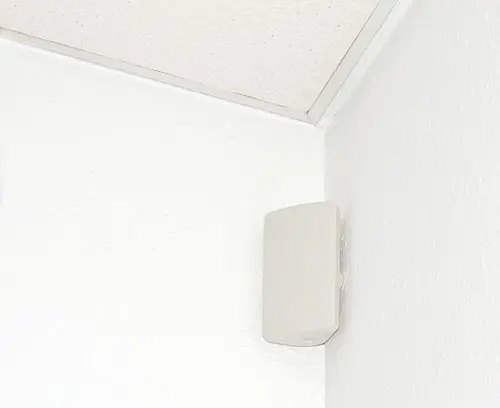

Wall suspension element This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 wall suspension element

Close

B4705907

Wall suspension element
product added to your basket
ASA+PC (UL 94 V-0)

Accessory "screws"

A0325060 Self-tapping screw 0.098" x 0.236" (T8)

A0325060

Self-tapping screw 0.098" x 0.236" (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0325060

Self-tapping screw 0.098" x 0.236" (T8)
product added to your basket
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T08

Torx T8 screwdriver
product added to your basket

Customizing options for B4610107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Protection class
IP 55 opt.
Necessary accessories: sealing, IP 40
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
6.811″
173 mm
Width
3.976″
101 mm
Height
2.323″
59 mm
PCB length, base
5.984″
152 mm
PCB width, base
2.756″
70 mm
PCB length, top
6.220″
158 mm
PCB width, top
3.465″
88 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
162 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
