Smart-Control

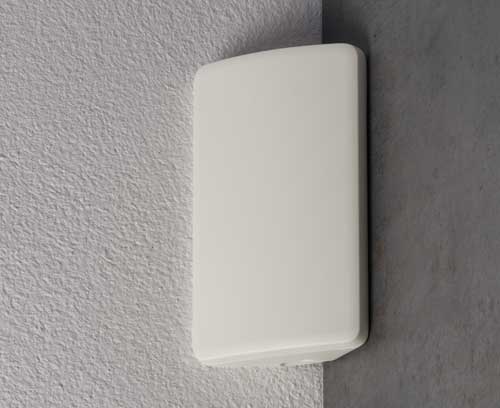

The enclosure for any corner

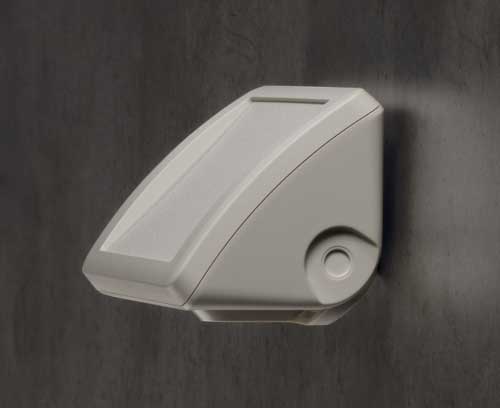

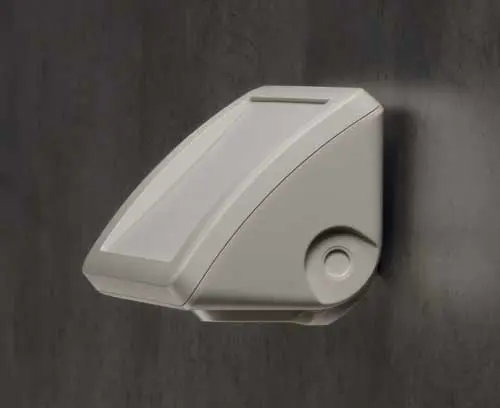

SMART-CONTROL is our first standard enclosure for easy installation in room corners. In addition, this enclosures range can be used both on an wall and on a desk at an ergonomically inclined angle.

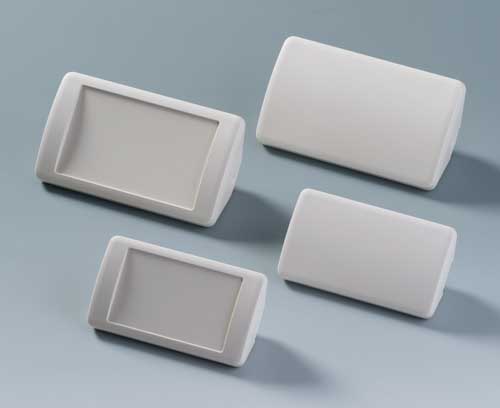

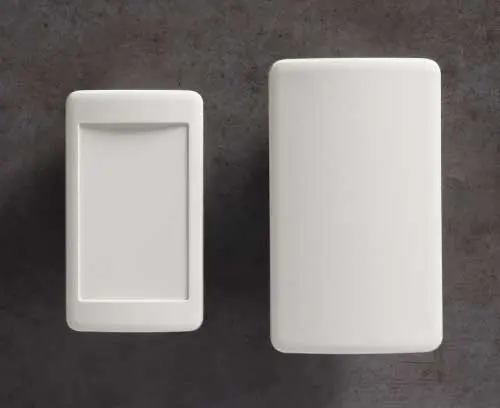

  • 2 sizes, M and S

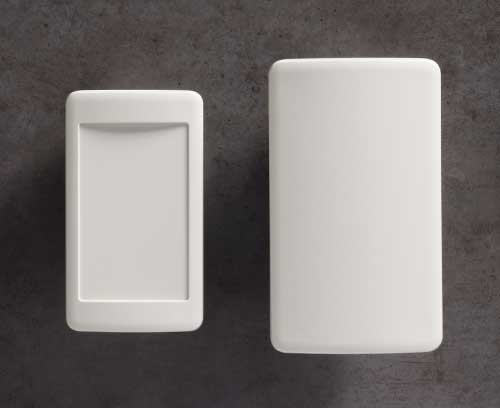

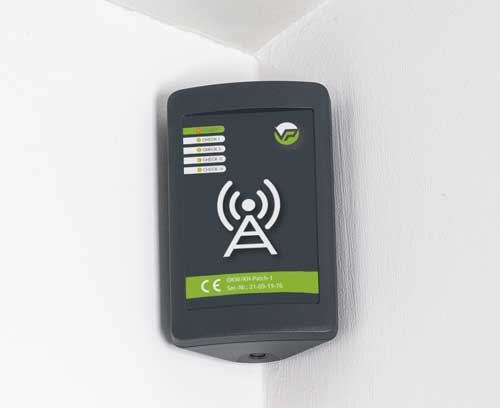

  • convex version or version with recessed operating area for membrane keypads
  • high-quality ASA+PC-FR material with high UV protection in the standard color off-white (RAL 9002)
  • screwed together on the rear of the enclosure using Torx stainless steel screws

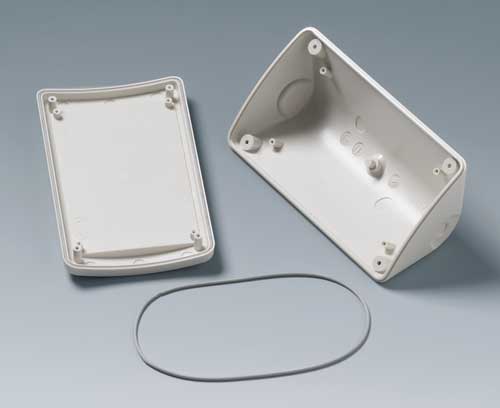

  • optional seal (accessory) for IP 55

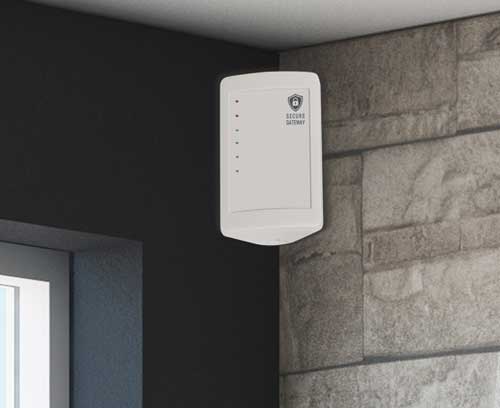

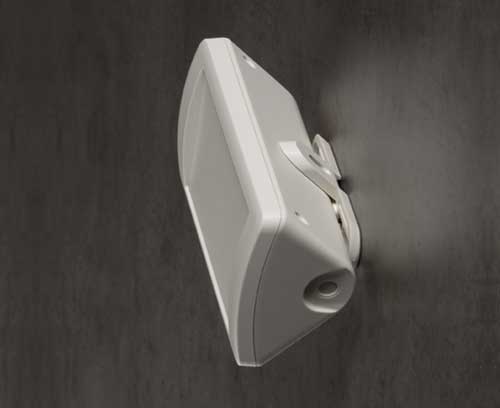

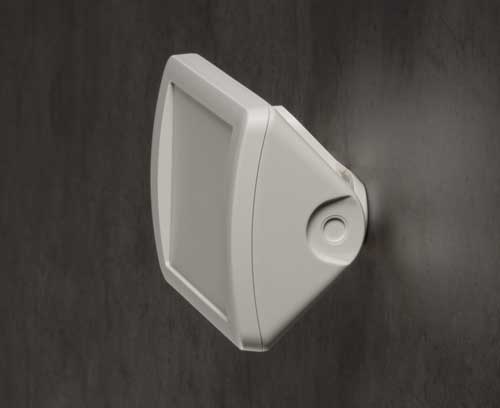

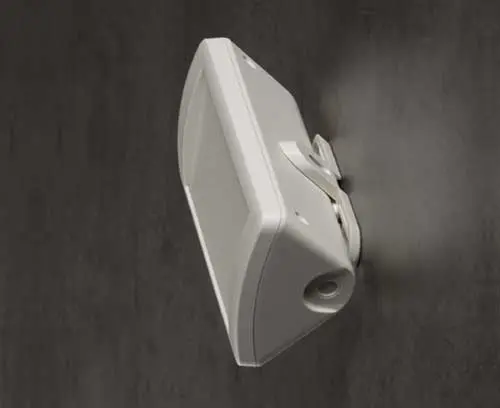

  • special wall suspension element (accessory) for mounting the enclosure in 90° inside corners or on flat surfaces
  • desktop stand set (accessory) ensures reliable desktop positioning and an ergonomic reading angle of 45° when the enclosure is set up horizontally
  • PCB mounting positions in the top and bottom parts
Generate PDF
  • Video
  • Application Examples

Application fields

  • Security and monitoring technology
  • Environmental technology
  • IoT/IIoT
  • Gateways
  • Measurement and control engineering, sensor technology
  • Control technology
  • Medical and laboratory technology
  • Browse Full List
  • Accessories
  • View Customizing Options
B4608107 SMART-CONTROL S, Vers. I

B4608107

SMART-CONTROL S, Vers. I Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top without recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Close

B4608107

SMART-CONTROL S, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
5.59″x3.19″x1.81″
IP 55 opt., IP 40
B4608207 SMART-CONTROL S, Vers. II

B4608207

SMART-CONTROL S, Vers. II Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top with recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Close

B4608207

SMART-CONTROL S, Vers. II
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
5.59″x3.19″x1.81″
IP 55 opt., IP 40

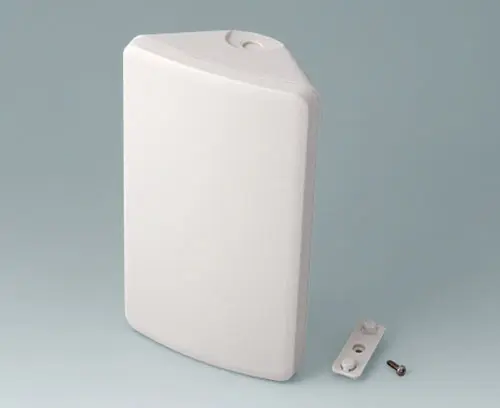

B4610107 SMART-CONTROL M, Vers. I

B4610107

SMART-CONTROL M, Vers. I Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top without recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Close

B4610107

SMART-CONTROL M, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
6.81″x3.98″x2.32″
IP 55 opt., IP 40

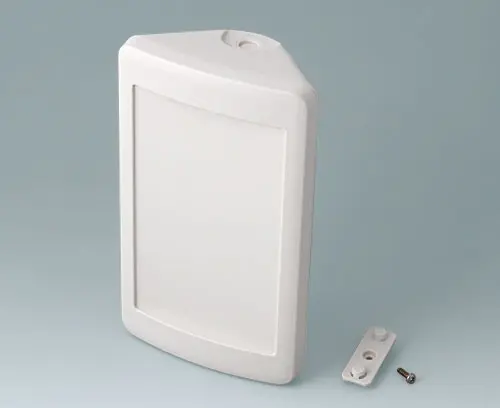

B4610207 SMART-CONTROL M, Vers. II

B4610207

SMART-CONTROL M, Vers. II Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top with recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Close

B4610207

SMART-CONTROL M, Vers. II
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
6.81″x3.98″x2.32″
IP 55 opt., IP 40
A0325060 Self-tapping screw 0.098" x 0.236" (T8)

A0325060

Self-tapping screw 0.098" x 0.236" (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0325060

Self-tapping screw 0.098" x 0.236" (T8)
product added to your basket
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T08

Torx T8 screwdriver
product added to your basket

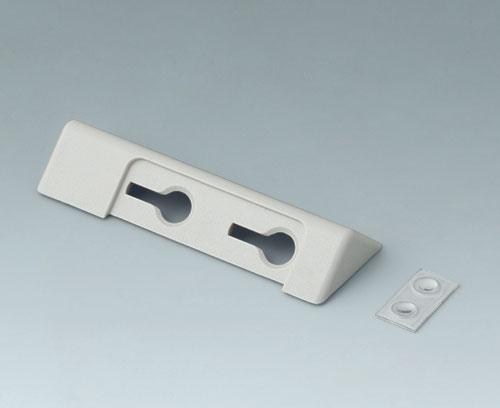

B4705207 Desktop stand set

B4705207

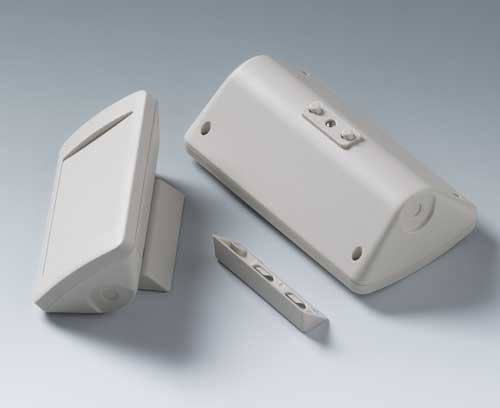

Desktop stand set For reliable positioning on a desktop, giving an ergonomic reading angle of 45° when the enclosure is set up horizontally. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 desktop stand set incl. 2 self-adhesive rubber feet

Close

B4705207

Desktop stand set
product added to your basket
ASA+PC (UL 94 V-0)

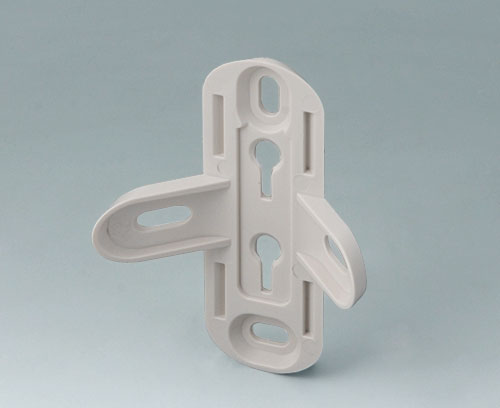

B4705907 Wall suspension element

B4705907

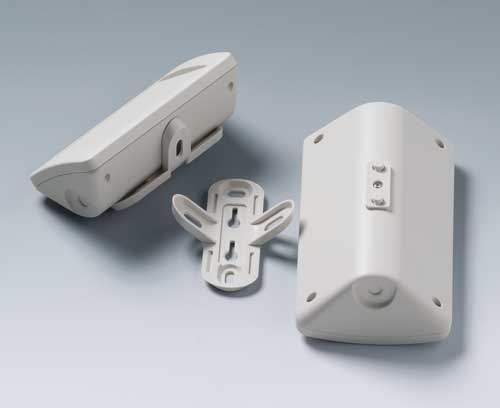

Wall suspension element This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 wall suspension element

Close

B4705907

Wall suspension element
product added to your basket
ASA+PC (UL 94 V-0)

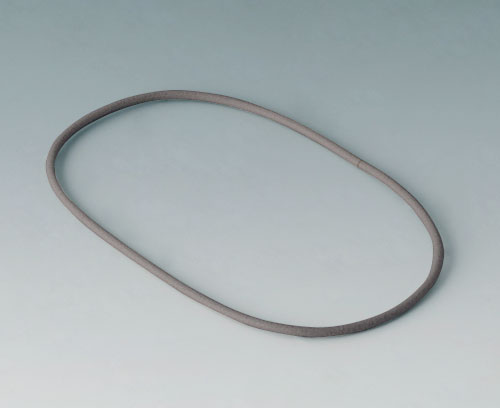

B4708920 Seal S

B4708920

Seal S Application: for increasing the protection class, of SMART-CONTROL S. Bottom part of the enclosure with groove for inserting the seal.

Supply 1 seal

Close

B4708920

Seal S
product added to your basket

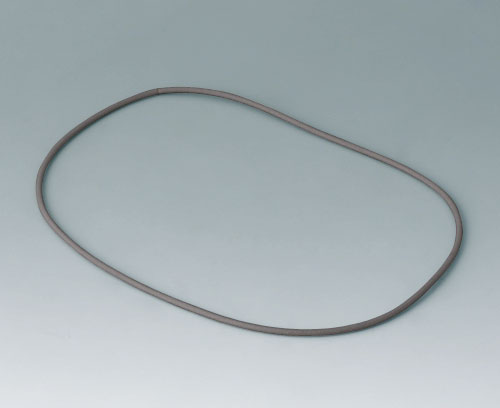

B4710920 Seal M

B4710920

Seal M Application: for increasing the protection class, of SMART-CONTROL M. Bottom part of the enclosure with groove for inserting the seal.

Supply 1 seal

Close

B4710920

Seal M
product added to your basket

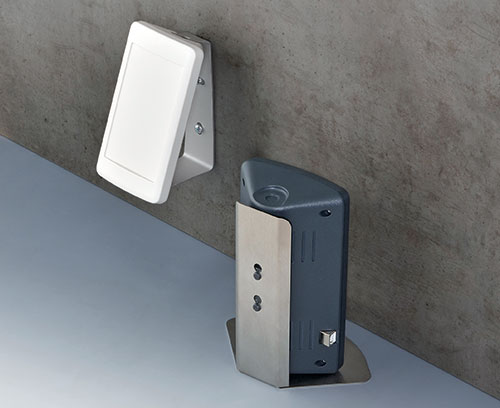

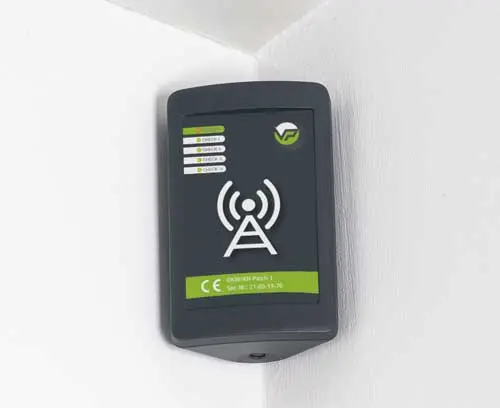

Customizing options for Smart-Control

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
