B4705907 Wall suspension element
Scroll

B4705907

Wall suspension element

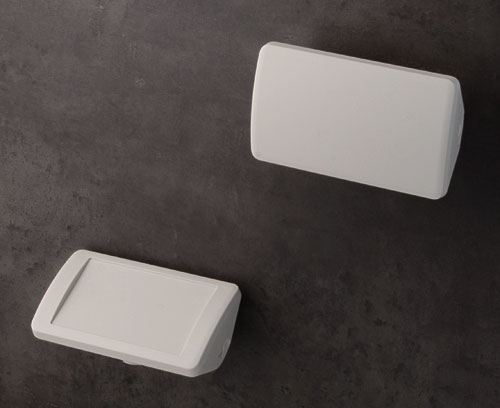

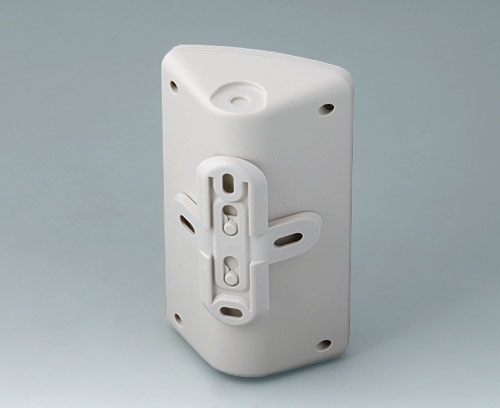

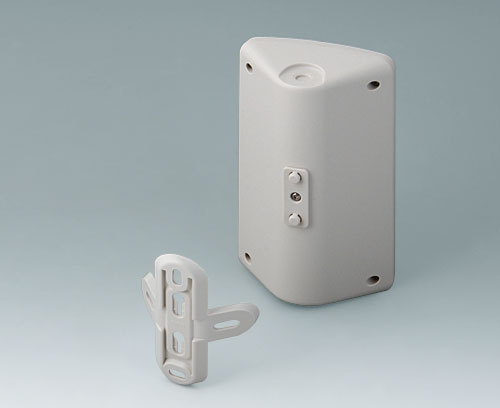

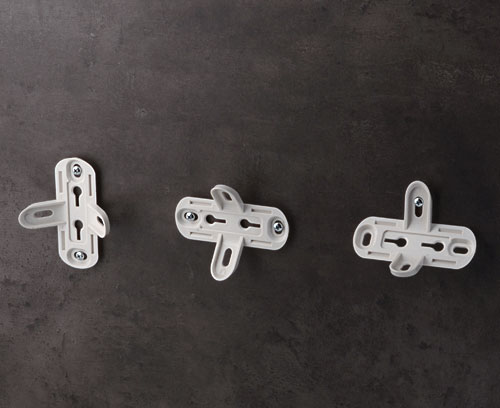

This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply

1 wall suspension element

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B4705907

Please select the product details you would like to include in the PDF.

Close
  • To be used for
B4608107 SMART-CONTROL S, Vers. I

B4608107

SMART-CONTROL S, Vers. I Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top without recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Close

B4608107

SMART-CONTROL S, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
5.59″x3.19″x1.81″
IP 55 opt., IP 40
B4608207 SMART-CONTROL S, Vers. II

B4608207

SMART-CONTROL S, Vers. II Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top with recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Close

B4608207

SMART-CONTROL S, Vers. II
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
5.59″x3.19″x1.81″
IP 55 opt., IP 40
B4610107 SMART-CONTROL M, Vers. I

B4610107

SMART-CONTROL M, Vers. I Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top without recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Close

B4610107

SMART-CONTROL M, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
6.81″x3.98″x2.32″
IP 55 opt., IP 40
B4610207 SMART-CONTROL M, Vers. II

B4610207

SMART-CONTROL M, Vers. II Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top with recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Close

B4610207

SMART-CONTROL M, Vers. II
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
6.81″x3.98″x2.32″
IP 55 opt., IP 40
  • Technical Data
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
15 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
